Filter Collector
Description
The class-leading 3P Filter Collector and 3P Filter Collector Universal filter and then divert harvested rainwater to maintain the highest quality tank water. Suitable for use with tanks of all sizes, the Filter Collector range will filter and divert water. It is the professional solution, used to fill small domestic water butts right up to industrial sized tanks of 10,000 litres or more. The stainless steel filter mesh is easily cleaned in-situ. Highly efficient.

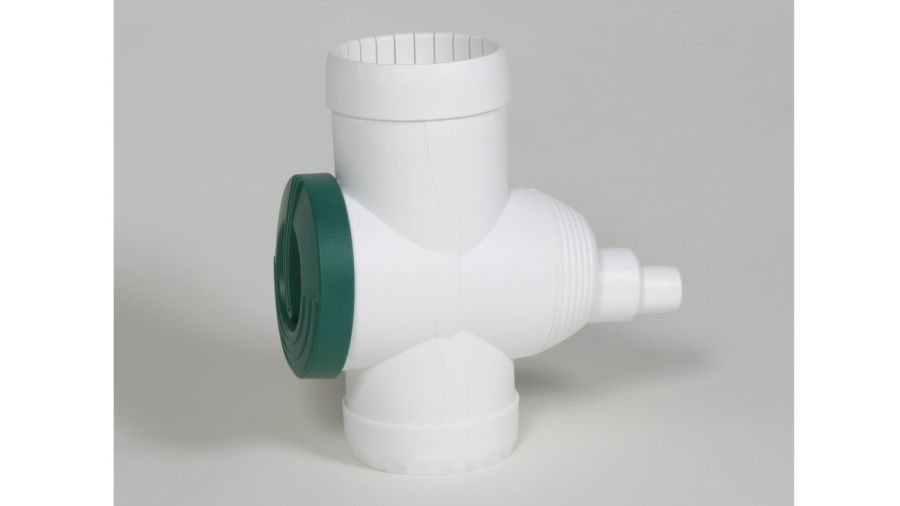

Filter Collector (Standard)
The Filter Collector is compatible with any of the 3P water butts supplied with Kit 1 or any thin walled water butt with walls up to 20mm thick. The push fit hose is sealed in the tank through a thick heavy duty 50mm rubber grommet supplied in the Kit. This provides a water-tight seal which allows the filter to act as the overflow point.

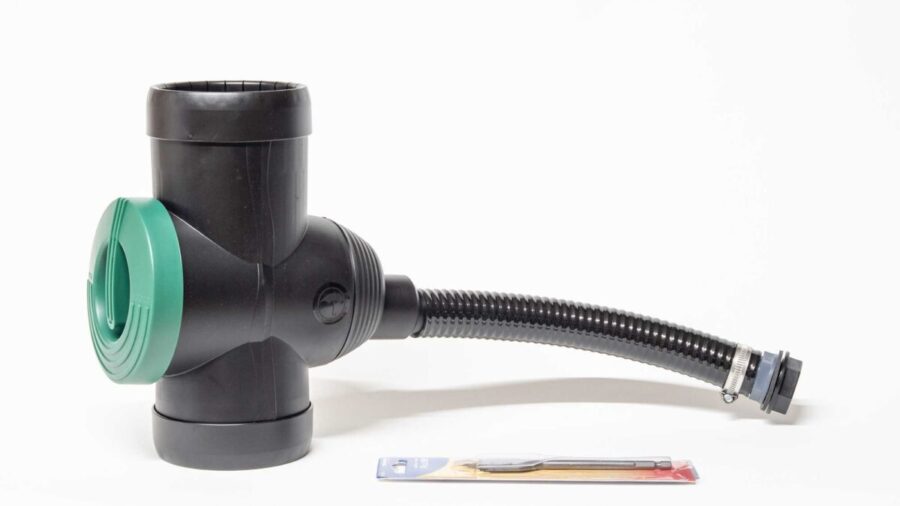

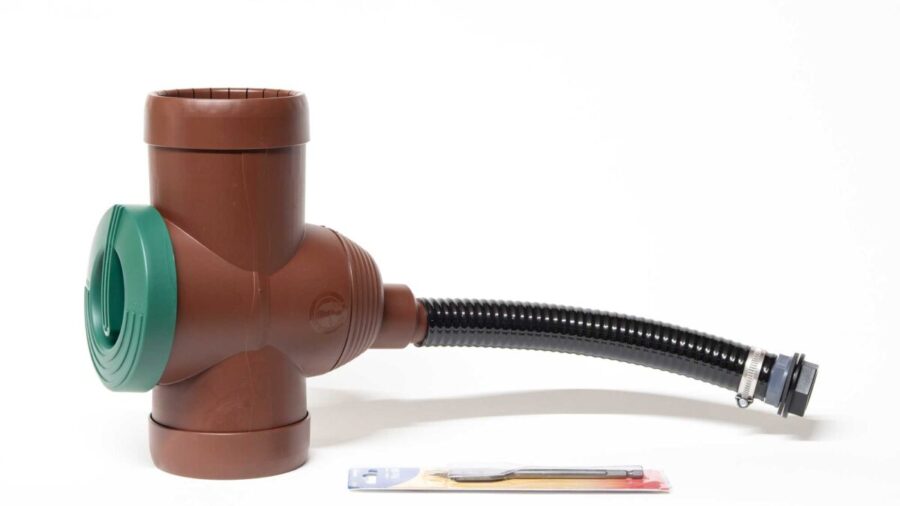

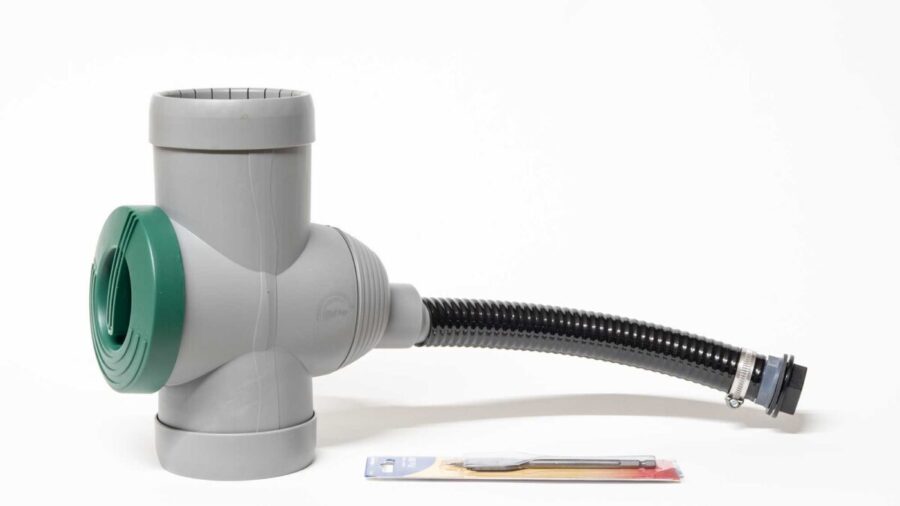

Filter Collector (Universal)
The Filter Collector Universal includes the standard Filter Collector as well as a Universal Fixing Kit. The Kit includes a 30cm flexible pipe, a hose tail, back nut, rubber sealing washer, and a flat bit for cutting the necessary entry point in the tank wall.
The Filter Collector Universal is compatible with any 3P or other tank of up to 7 mm wall thickness with a lid or other access point which allows one to reach into the tank to tighten the back nut to the hose tail.
This provides a water-tight seal which allows the filter to act as the overflow point.
Technical Data
Filter Collector (Standard)
Colour | Product Code | Kit | Max Roof Size | Fits Round Downpipe Sizes | Fits Square Downpipe Sizes | Outlet Diameters |
---|---|---|---|---|---|---|
Brown | 2000810 | 1 | 90m2 | 68 – 100mm | 65 – 75mm | 32 & 50mm |
Grey | 2000820 | 1 | 90m2 | 68 – 100mm | 65 – 75mm | 32 & 50mm |
Black | 2000840 | 1 | 90m2 | 68 – 100mm | 65 – 75mm | 32 & 50mm |
White | 2000850 | 1 | 90m2 | 68 – 100mm | 65 – 75mm | 32 & 50mm |
Filter Collector (Universal)
Colour | Product Code | Kit | Max Roof Size | Fits Round Downpipe Sizes | Fits Square Downpipe Sizes | Outlet Diameters |
---|---|---|---|---|---|---|
Brown | 2000810U | Universal | 90m2 | 68 – 100mm | 65 – 75mm | 32 & 50mm |
Grey | 2000820U | Universal | 90m2 | 68 – 100mm | 65 – 75mm | 32 & 50mm |
Black | 2000840U | Universal | 90m2 | 68 – 100mm | 65 – 75mm | 32 & 50mm |
White | 2000850U | Universal | 90m2 | 68 – 100mm | 65 – 75mm | 32 & 50mm |
if you need more information, help selecting the best product for your needs or simply want to buy our products, please Contact our team of experienced rainwater harvesting experts.
