Downpipe Filters/Diverters
3P Technik UK downpipe filters are designed to be fitted into a section of the downpipe section of a guttering system. We supply two types of downpipe filter:
- Our side outlet filters direct cleaned rainwater into a connected water butt or tank from a side outlet. Dirt and waste water continue through the downpipe to the waste.
- Our front opening filters release dirt and debris through a front opening, allowing the cleaned water to continue down the downpipe and into the connected tank or infiltration system, whilst keeping the drainage system free of leaves and other debris.
Filter Collector
Filter Collector Universal
Leaf Catcher
Leaf Separator
Rain Collector
Rain Collector with Tap
Rainus
Filter Collector
The class-leading 3P Filter Collector and 3P Filter Collector Universal filter and then divert harvested rainwater to maintain the highest quality tank water. Suitable for use with tanks of all sizes, the Filter Collector range will filter and divert water. It is the professional solution, used to fill small domestic water butts right up to industrial sized tanks of 10,000 litres or more. The stainless steel filter mesh is easily cleaned in-situ. Highly efficient.
The Filter Collector is compatible with any of they 3P water butts supplied with Kit 1. The push fit hose is sealed in the tank through a thick heavy duty 50mm rubber grommet supplied in the Kit. This provides a water-tight seal which allows the filter to act as the overflow point.Filter Collector Universal

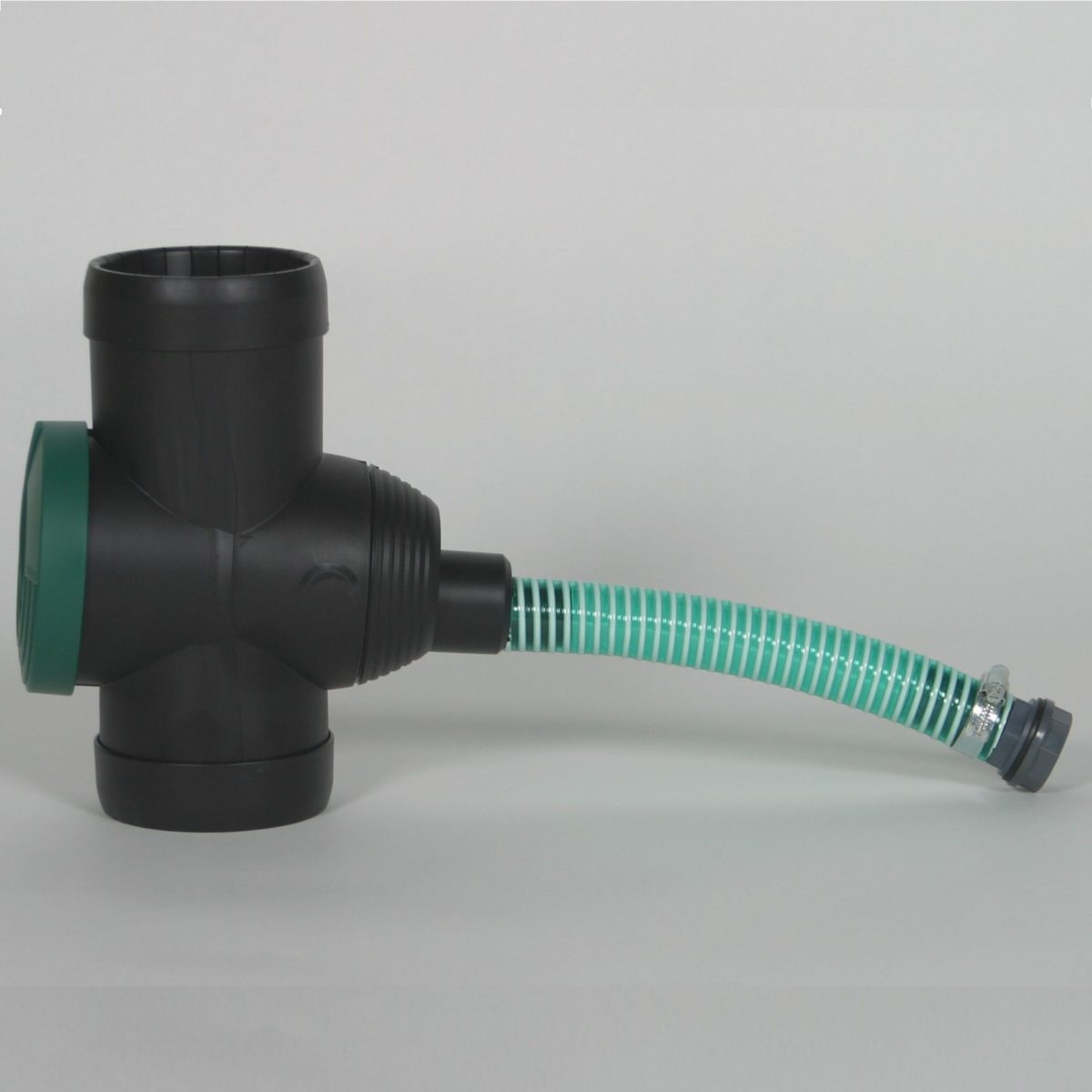

The class-leading 3P Filter Collector and 3P Filter Collector Universal filter and then divert harvested rainwater to maintain the highest quality tank water. Suitable for use with tanks of all sizes, the Filter Collector range will filter and divert water. It is the professional solution, used to fill small domestic water butts right up to industrial sized tanks of 10,000 litres or more. The stainless steel filter mesh is easily cleaned in-situ. Highly efficient.
The Filter Collector Universal includes the standard Filter Collector as well as a Universal Fixing Kit. The Kit includes a 30 cm flexible pipe, a hose tail, back nut, rubber sealing washer, and a flat bit for cutting the necessary entry point in the tank wall.
The Filter Collector Universal is compatible with any 3P or other tank of up to 7 mm wall thickness with a lid or other access point which allows one to reach into the tank to tighten the back nut to the hose tail.
This provides a water-tight seal which allows the filter to act as the overflow point.Leaf Catcher
The Leaf Catcher collects debris such as leaves or moss from rainwater as it is harvested. Easily maintained by periodically emptying the plastic basket, the Leaf Catcher is supplied with a UK adapter to fit 65 mm square downpipes or 68, 80, and 100 mm round downpipes.Leaf Separator
The Leaf Separator ejects leaves and larger particles out of the filter side, allowing cleaned rainwater to pass through the down pipe.
Available in Black, Brown & Grey.
Suitable for roof areas up to 80m².
Can be installed on DN80 & DN100 downpipes.
With the UK adapters suitable for 65mm square and 68mm round downpipesRain Collector

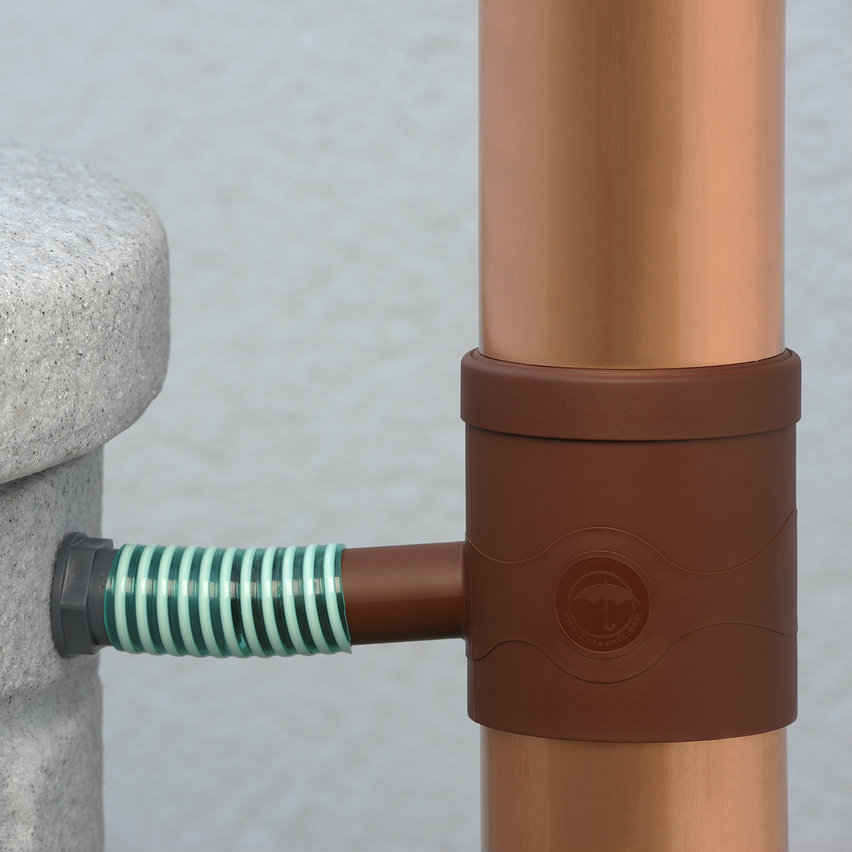

The Rain Collector separates debris from harvested rainwater with its intelligently designed coarse filter slats.Rain Collector with Tap

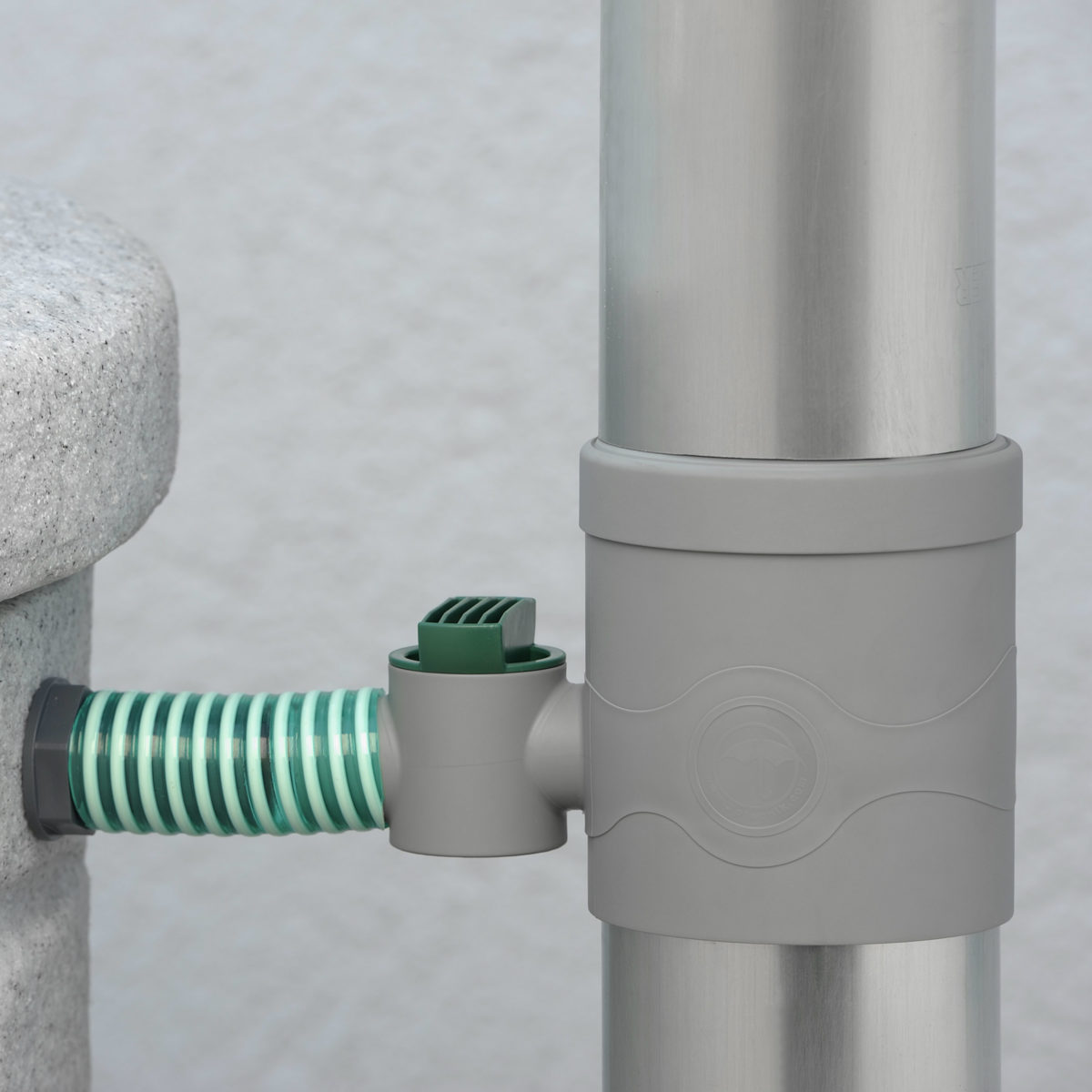

The Rain Collector with Tap is supplied with an in-built tap to control or stop the flow of diverted water, and the Rain Collector Universal is supplied with a Universal Connector Kit. The Kit includes a back nut, rubber washer, connection hose, and stainless steel hose clips.Rainus
The Rainus filters debris from rainwater, allowing the clean water to continue through the downpipe. Ideal for retro-fitting systems which have not yet had a filter fitted, the Rainus is also suited to use with ponds and infiltration systems. The Standard Rainus fits downpipes of 80, 90, or 100 mm diameter. These downpipes are usually found in either aluminium or zinc. The Rainus with UK Adapters is also compatible with 68 mm round UK downpipes and 65 mm square downpipes.
if you need more information, help selecting the best product for your needs or simply want to buy our products, please Contact our team of experienced rainwater harvesting experts.
