Top-Up Controller TCA5000950 Electronic Mains Water Top-up Kit

Automatic mains water top-up Controller kit for rainwater tanks.  Incorporates electronic leak detection routine, preventing undue consumption of mains water. This is our top seller for domestic systems, thousands sold in the UK since 2003.

Electronic control of mains water top-up and pump for domestic sized direct pressure rainwater harvesting installations.

Uses a solid state conductivity sensor to sense low water level, avoiding the movement and accuracy issues of a float switch. Conductivity sensors experience no mechanical wear during use leading to long lifespan and reliability.

Electronically timed top-up overrun alarm, halts operation and alerts the user in the event that the tank level fails to be replenished by the top-up cycle. Prevents potential wastage of water due to tank or duct failure. Alerts the user to failure of the solenoid valve.

Pump isolation is optional using the front power socket, and allows the controller to isolate the pump during a top-up cycle to avoid water useage exceeding the rate of replenishment.

Water is topped up via a BSEN13076 and BS8515 compliant tundish.

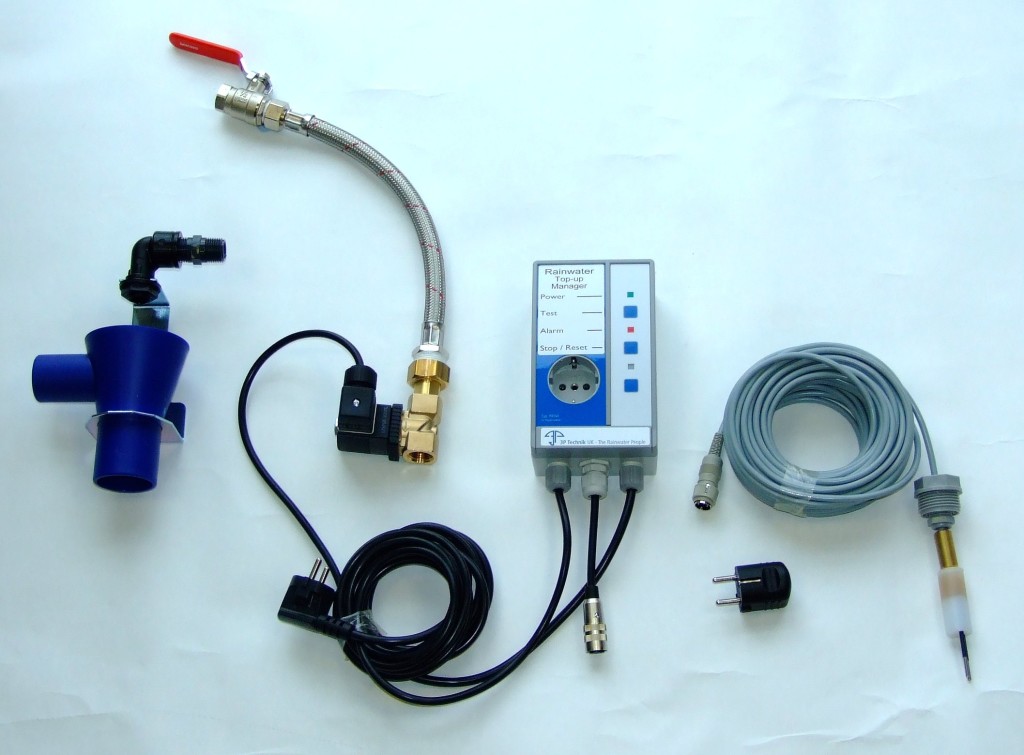

Supplied with 15 metre conductivity probe, 1/2” solenoid valve, tundish, stainless steel braided mains water connection hose, and 50mm tundish. It is the the world renowned 3P Tundish with its  unique integrated overflow that ensures  an unobstructed air gap to prevent pollution of potable water by backflow, so fully meeting the requirements of BS EN13076.

TCA5000950ECON Economy version supplied without braided hose and isolation valve.

All components are available as spares in the event of losses or physical damage.

Features

• Max 10A ~1 230vac pump output for pump isolation control.
• Ingress Protection IP20.
• Pump Outlet fused at 10A.
• Electronic overvoltage protection.
• Solenoid test function (push button).
• Halt and Reset.
• Mains top-up indicator.
• Mains top-up failure alarm indicator.
