Rainwater Harvesting Controllers
We understand how to manage and control rainwater for use in your home, farm or business premises. Whether you want to be totally off grid in your water use or expect to top-up your harvested rainwater with mains water we have a controller that is suitable for you.
if you need more information, help selecting the rainwater harvesting control panel for your needs or simply want to buy our products, please Contact Us or call us on 01239 623506.
DIN Rail Mounted Rainwater Level Controller – RainControl
Hybrid Direct Pressure Rainwater Controller
Electronic Mains Water Top-up Kit with Pump Isolation and Alarm
Advanced Direct/Top-up Rainwater Controller
Advanced Header Tank Rainwater Controller
24V Rainwater Header Tank Controller -TCS6JB Series – Low Voltage Top-up Switch
DIN Rail Mounted Rainwater Level Controller – RainControl
DIN rail mounted unit, that measures a rainwater tank level using a submerged pressure sensor (not included) and either tops up with a measured amount of mains water (direct systems with submerged pump), or opens a 3 way motorized valve (indoor break tank & pump systems) when required.
When a low level threshold is reached, RainControl opens a solenoid or motorised valve to supply mains water until a high level threshold is reached. After this, RainControl de-activates the output and reverts to level display mode.Hybrid Direct Pressure Rainwater Controller
The 3P RainForce TH and TS series control panels are an advanced rainwater management solution, designed to manage the supply of water from an underground rainwater harvesting tank to supply points within the building under direct pressure, with mains water back up supplied via an intermediate break tank. Like all RainForce commercial Controllers it has been designed to prioritise maximum availability of water (preferring rainwater where possible) with minimal power consumption, whilst keeping possible points of failure to a minimum.Electronic Mains Water Top-up Kit with Pump Isolation and Alarm

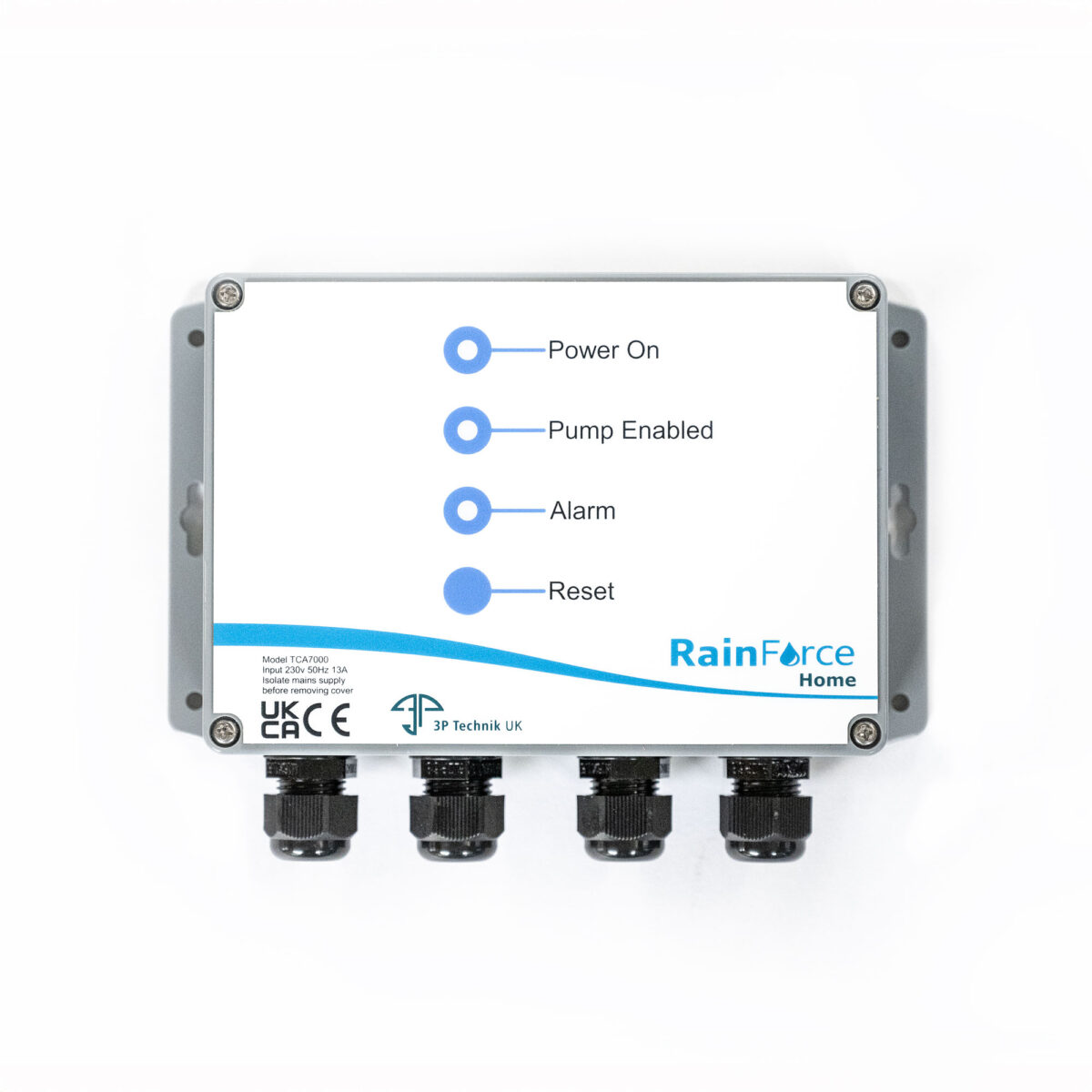

Automatic mains water top-up Controller kit for rainwater tanks with pump isolation and alarm. Incorporates electronic leak detection routine, preventing undue consumption of mains water. This is our top seller for domestic systems, thousands sold in the UK since 2003.Advanced Direct/Top-up Rainwater Controller
Rainforce T Series – For systems with no header tank, but are direct feed, pressurised systems The 3P RainForce T Series commercial Rainwater Controller performs all the functions you would expect of a commercial system such as adjustable pressure, duty standby/assist and BMS output, whilst remaining extremely compact. Pressure control is achieved by modulation of the pumps which are run as required to maintain pressure within a specified range, avoiding the loss of efficiency associated with variable speed systems when running at low demand.Advanced Header Tank Rainwater Controller
Rainforce H Series – For water systems with a header tank The 3P RainForce H series commercial Rainwater Controller performs all the functions you would expect of a commercial indirect system such as multiple pump control, duty standby, BMS output, whilst remaining extremely compact. Header tank level control control is achieved by software with the emphasis on providing maximum availability of water without the efficiency losses associated with ball cocks, or the reliability problems of a float switch based system.24V Rainwater Header Tank Controller -TCS6JB Series – Low Voltage Top-up Switch
The TCS6JBL Low Voltage Top-up Switch is intended to ensure the availability of water in a rainwater header tank by controlling a pump operating at mains voltage and a solenoid operating at 24 volts.
